Technologywhich helps who work

The PRATICA milling machine has been designed to facilitate and improve all the drilling and milling operations of electrical panels.

Everything starts using a simple 2D CAD on which it is possible to draw the "openings" to be made as well as to set the fixing templates of the components to be installed in the bottom plate, creating the desired layout quickly and easily, even by drawing on the libraries available on-line or previously created.

Thanks to PRATICA it is possible to drill the internal panels for the installation of the components, and to make cuts of any shape on doors, junction boxes, etc ...

Aided by a powerful Ethernet controller and the integrated CAM, DWG / DXF files generated by any CAD can be imported, making it extremely flexible and easy to use.

With PRATICA positioning the components on the bottom plate to "trace" their fastening, the use of hole cutters, hydraulic punching machines and jigsaws becomes just an old memory of how people used to work in the past...

The fixing of the workpieces, whether they are boxes, plates, doors or sides of electrical panels, but also Lexan, wood or other materials, has been optimized and made simple thanks to the use of the motorized mobile support surface, as well as specific clamping brackets which, together with the very useful sheet-holder, which we devised, prevent the piece from moving, thus ensuring precision in the machining of a real "machine tool".

Photocell barriers prevent entry into the work area during automatic machining, which, together with the protections around the tool, allow operators to work in extreme safety.


Working Area

X axis: 1250 mm
Y axis: 2100 mm
Z axis: 180 mm
Max depth: 1200 mm

Speed

Rapid movement: 15 mt / min
Processing: Automatic

Mechanics

viti guide
PRATICA is equipped with
Screws and Ball Linear Guides

Motion Control

motori

Stepless Motors with encoder

Spindle

ELECTRIC SPINDLE:

Max revolutions: 6.000 rpm
Power: 5 KW
Tool holder: ISO30

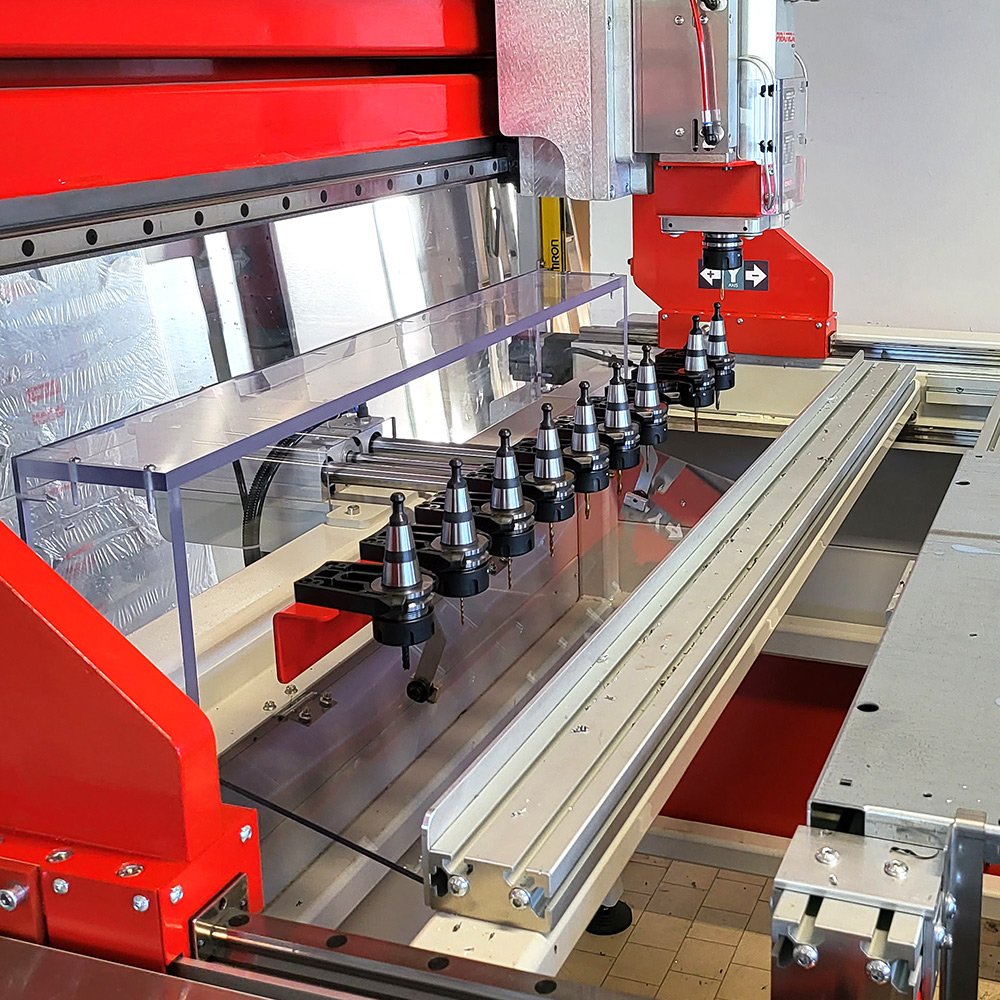

Tool Change

Automatic operation with 10-station basket and Electrospindle which, equipped with automatic tool lock / release, picks up the required tool from the NC in that phase of the work program while it is running
